对于 Oracle Oracle ADG 备库重启时有些人都会有一个小问题，那就是没有及时应用日志没启动 MRP0 进程，导致主备库不同步。一般情况下主备库不同步的原因有：

  • 主库 SYS 密码改变而未同步密码文件到备库
  • 主库或者备库归档空间满无法归档
  • 主库或者备库监听异常，无法通过网络连接到主备库
  • 主库相关参数改变导致无法和备库正常同步
  • 主备库 tnsnames sqlnet listener 等文件改变
  • 备库未开启日志应用进程
  • 备库磁盘空间不足等等其他原因。

而这些原因大多数都可以通过查看主备库的 alter 告警日志展现出来，或者在主库查看视图 V$ARCHIVE_DEST。

SELECT DEST_ID, STATUS, APPLIED_SCN,ERROR FROM V$ARCHIVE_DEST WHERE TARGET='STANDBY';

一、ADG 备库停启维护步骤

下面来看一下ADG 备库停启维护流程(以 11g 为例)。

1、停备库应用

如果备库有查询等的只读业务，最好可以先停止相关业务。

查看备库保护模式

select DATABASE_ROLE,PROTECTION_MODE,PROTECTION_LEVEL from v$database;

DATABASE_ROLE    PROTECTION_MODE      PROTECTION_LEVEL
---------------- -------------------- --------------------
PHYSICAL STANDBY MAXIMUM PERFORMANCE  MAXIMUM PERFORMANCE

Maximum performance：最大性能模式 默认的保护模式；在不影响主库性能的情况下，提供最高级别的保护模式。 Maximum protection ：最大保护模式 保证备库的内容和主库的内容完全一致，不能有丝毫的差别；保证当主库出现问题，不会有任何的数据丢失；为了达到这样的保护级别，redo data 必须同时写入主库的 online redo log和备库的 standby redo log；一旦备库的日志写入不成功，那么，主库 hang 住，超过某个时间长度，主库自动停止实例； Maximum availability：最大可用模式 介于最大保护和最大性能之间的一种模式：一般使用最大保护模式保护主库，一旦达不到最大保护模式的条件，转为最大性能模式；要求所有事务在提交前必须保障 redo 数据至少在一个 standby 数据库可用，不过与之不同的是，如果出现故障导入无法同时写入standby 数据库 redo log，primary 数据库并不会 shutdown，而是自动转为最大性能模式，等 standby 数据库恢复正常之后，它又会再自动转换成最大可用性模式。

2、先停监听,杀会话

lsnrctl status
lsnrctl stop
ps -ef | grep LOCAL=NO | grep -v grep | awk '{print $2}' |wc -l
ps -ef | grep LOCAL=NO | grep -v grep | awk '{print $2}' | xargs kill -9
ps -ef | grep LOCAL=NO | grep -v grep | awk '{print $2}' |wc -l

3、ADG备库检查、停备库

sqlplus / as sysdba
--查看同步情况
set linesize 150;
set pagesize 9999;
column name format a13;
column value format a20;
column unit format a30;
column TIME_COMPUTED format a30;
select name,value,unit,time_computed from v$dataguard_stats where name in ('transport lag','apply lag');

select open_mode from v$database;
select process,status,sequence# from v$managed_standby;

主备库查看归档路径

column destination format a50
column process format a7
column ID format 99
column mid format 99
SELECT thread#, dest_id, destination, gvad.status, target, schedule, process, mountid mid
FROM gv$archive_dest gvad, gv$instance gvi
WHERE gvad.inst_id = gvi.inst_id
AND destination is NOT NULL
ORDER BY thread#, dest_id;

   THREAD#    DEST_ID DESTINATION                                        STATUS    TARGET  SCHEDULE PROCESS MID
---------- ---------- -------------------------------------------------- --------- ------- -------- ------- ---
         1          1 +FRA                                               VALID     PRIMARY ACTIVE   ARCH      0
         1          2 jieket4dg                                           VALID     STANDBY ACTIVE   LGWR      0
         1          3 jiekeyun                                            DEFERRED  STANDBY PENDING  LGWR      0
         2          1 +FRA                                               VALID     PRIMARY ACTIVE   ARCH      0
         2          2 jieket4dg                                           VALID     STANDBY ACTIVE   LGWR      0
         2          3 jiekeyun                                            DEFERRED  STANDBY PENDING  LGWR      0
         3          1 +FRA                                               VALID     PRIMARY ACTIVE   ARCH      0
         3          2 jieket4dg                                           VALID     STANDBY ACTIVE   LGWR      0
         3          3 jiekeyun                                            DEFERRED  STANDBY PENDING  LGWR      0
         4          1 +FRA                                               VALID     PRIMARY ACTIVE   ARCH      0
         4          2 jieket4dg                                           VALID     STANDBY ACTIVE   LGWR      0
         4          3 jiekeyun                                            DEFERRED  STANDBY PENDING  LGWR      0

12 rows selected.

--备库查看

   THREAD#    DEST_ID DESTINATION                                        STATUS    TARGET  SCHEDULE PROCESS MID
---------- ---------- -------------------------------------------------- --------- ------- -------- ------- ---
         1          1 /data/jxrtt4dg/arch                                VALID     LOCAL   ACTIVE   ARCH      0
         1          2 jxr2p                                              VALID     REMOTE  PENDING  LGWR      0
         1         32 /data/jxrtt4dg/arch                                VALID     LOCAL   ACTIVE   RFS       0

关库

sqlplus / as sysdba
shutdown immediate;
exit;

--查看 alter 日志
tail -50f alert_jiekedb.log

4.主机关机维护，等待完毕后开机

shutdown -h now

注意：如果主机关机维护过程时间比较长，导致主库的归档日志已经被删除了而且也没有备份归档，则只能全量恢复或者增量恢复备库了,所以维护前需要调整归档删除策略来避免归档被删除。

5.启动 ADG 备库

先查看是否已启动

su - oracle
ps -ef | grep smon
lsnrctl status
sqlplus / as sysdba

如果已启动，检查数据库启动到哪个阶段

col HOST_NAME for a30
select INSTANCE_NAME,HOST_NAME,VERSION,STARTUP_TIME,STATUS from gv$instance;

如果没有启动,则先启动到 mount

sqlplus / as sysdba
startup mount
select open_mode from v$database;

检查 mrp0 进程是否开启

select process,status,sequence#,THREAD# from v$managed_standby where PROCESS='MRP0';

PROCESS STATUS        SEQUENCE#    THREAD#
------- ------------ ---------- ----------
MRP0    APPLYING_LOG       4764

检查 ADG 同步情况

set linesize 150;
set pagesize 9999;
column name format a13;
column value format a20;
column unit format a30;
column TIME_COMPUTED format a30;
select name,value,unit,time_computed from v$dataguard_stats where name in ('transport lag','apply lag');
--如果没有开启则先开启 mrp0 进程，使用如下语句应用日志进程 mrp0
alter database recover managed standby database using current logfile disconnect;

再次查看等如下 value 值为0

set linesize 150;
set pagesize 9999;
column name format a13;
column value format a20;
column unit format a30;
column TIME_COMPUTED format a30;
select name,value,unit,time_computed from v$dataguard_stats where name in ('transportlag','apply lag');

取消日志应用

alter database recover managed standby database cancel;

然后 open 数据库实例

alter database open;

select open_mode from v$database;

然后需要继续应用日志进程 mrp0

alter database recover managed standby database using current logfile disconnect;

--检查 mrp0 进程
select process,status,sequence#,THREAD# from v$managed_standby;

--查看日志应用时间，注意 apply lag 即可。
set linesize 150;
set pagesize 9999;
column name format a13;
column value format a20;
column unit format a30;
column TIME_COMPUTED format a30;
select name,value,unit,time_computed from v$dataguard_stats where name in ('transport lag','apply lag');

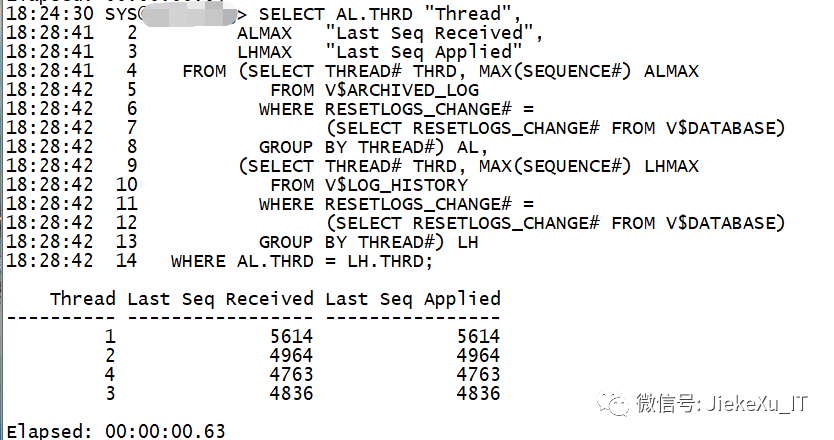

SELECT AL.THRD "Thread",
       ALMAX   "Last Seq Received",
       LHMAX   "Last Seq Applied"
  FROM (SELECT THREAD# THRD, MAX(SEQUENCE#) ALMAX
          FROM V$ARCHIVED_LOG
         WHERE RESETLOGS_CHANGE# =
               (SELECT RESETLOGS_CHANGE# FROM V$DATABASE)
         GROUP BY THREAD#) AL,
       (SELECT THREAD# THRD, MAX(SEQUENCE#) LHMAX
          FROM V$LOG_HISTORY
         WHERE RESETLOGS_CHANGE# =
               (SELECT RESETLOGS_CHANGE# FROM V$DATABASE)
         GROUP BY THREAD#) LH
 WHERE AL.THRD = LH.THRD;

6、验证主备同步性

主库 切换日志检查备库日志是否会立即同步

alter system switch logfile;

alter system archive log current;

备库查看 Alert 日志更新情况 tail -500f alert_jiekedb.log

二、备库基于 SCN 增量恢复

备库由于前面提到的更改主库 SYS 密码忘记同步密码文件到备库导致备库已经十多天不同步了，由于此库属于非生产库，没有备份更没有备份归档，恢复归档的方法这里就不能用了，故只能选择全库恢复或者基于 SCN 增量恢复，这里选择增量恢复。关于 ADG 备库恢复的前面也有一份手册，需要的可点此查看。

1、查看备库当前 SCN

以备库当前 SCN 为时间点，在主库上基于此 SCN 做增量备份，然后恢复到备库，再应用当前日志即可正常同步备库。

sqlplus / as sysdba
select  to_char(current_scn) from v$database;
TO_CHAR(CURRENT_SCN)
----------------------------------------
11381638776

这里查到备库的 SCN （最好是最小 SCN）之后，需要到主库查看基于此 SCN 号之后是否有新增数据文件，新增的数据文件无法通过增量恢复，必须先恢复数据文件之后方可增量恢复。

2、主库备份控制文件传到备库恢复

alter database create standby controlfile as '/tmp/t4_standby.ctl';

scp /tmp/t4_standby.ctl 到备库 /tmp/t4_standby.ctl。

3、重启备库

shu immediate
startup nomount

4、备库 rman 恢复控制文件

rman target /
restore controlfile from '/tmp/t4_standby.ctl';

5、备库启动到 mount

RMAN> sql 'alter database mount';

6、主库基于 SCN 增量备份 11381638776

run{
allocate channel c1 type disk;
allocate channel c2 type disk;
backup INCREMENTAL from scn 11381638776 database format '/nfs/backup/incre_%U';
release channel c1;
release channel c2;

7、增量备份传到备库 /data/backup/ 并注册 catalog

scp -r /nfs/backup/incre* 到备库 /data/backup/

RMAN> catalog start with '/data/backup/';

8、recover 恢复备库

使用recover database noredo 即可恢复，但是可惜的是我这里报错了。

RMAN> recover database noredo;

Starting recover at 2022-01-24 16:25:58
using channel ORA_DISK_1
RMAN-00571: ===========================================================
RMAN-00569: =============== ERROR MESSAGE STACK FOLLOWS ===============
RMAN-00571: ===========================================================
RMAN-03002: failure of recover command at 01/24/2022 16:25:59
RMAN-06094: datafile 26 must be restored

RMAN> recover database noredo;

Starting recover at 2022-01-24 16:30:45
using channel ORA_DISK_1
RMAN-00571: ===========================================================
RMAN-00569: =============== ERROR MESSAGE STACK FOLLOWS ===============
RMAN-00571: ===========================================================
RMAN-03002: failure of recover command at 01/24/2022 16:30:45
RMAN-06094: datafile 26 must be restored

三、排查问题及解决

1、主库查看 基于 SCN 后是否有新增文件

select file#,name from v$datafile where creation_change#> =11381638776;

SQL> select file#,to_char(creation_time,'yyyy-mm-dd hh24:mi:ss' ) creation_time,status,last_time,name from v$datafile
    where creation_change#>11381638776;

no rows selected

但是通过这个 SQL 查不到，证明基于此 SCN 没有新增数据文件。但前面 26 号却是实实在在得报错了，百思不得其解，大于 26 号文件的还有 27 、28 号文件。

查看 alter 日志

grep -A 4 "alter database datafile 27" alert_jie2p1.log

alter database datafile 27 resize 30g
Completed: alter database datafile 27 resize 30g
Thu Dec 30 14:47:56 2021
alter database datafile 27 resize 32767m
Completed: alter database datafile 27 resize 32767m

--添加 28 号数据文件记录。

alter tablespace JIEKE_DATA add datafile '+DATA' size 32767M
Wed Jan 05 19:46:36 2022
Completed: alter tablespace JIEKE_DATA add datafile '+DATA' size 32767M
Wed Jan 05 19:47:52 2022

查看 alter 日志此三个数据文件也是在修改主库密码文件前添加的，所以不属于新增的数据文件。

查看这三个文件创建时间

col name for a69
select file#,name,CREATION_TIME from v$datafile where file#>=26;
    FILE# NAME                                                                  CREATION_TIME
---------- --------------------------------------------------------------------- -------------------
        26 +DATA/jie2p/datafile/t4_ccdb_data.313.1083605453                     2021-09-18 17:31:09
        27 +DATA/jie2p/datafile/jieke_data.314.1087482763                       2021-11-01 14:32:57
        28 +DATA/jie2p/datafile/jieke_data.323.1093203957                       2022-01-05 19:46:35
查看生成的备库控制文件中确实存在如上的三个数据文件，说明控制文件恢复的也没有问题。
strings t4standby.ctl | grep jieke_data.323.1093203957

备库通过 report schema; 查看 Size 大小为 0，“Datafile Name” 列的路径下没有数据文件，说明这三个文件存在问题。

RMAN> report schema;

RMAN-06139: WARNING: control file is not current for REPORT SCHEMA
Report of database schema for database with db_unique_name JIEKET4DG

List of Permanent Datafiles
===========================
File Size(MB) Tablespace           RB segs Datafile Name
---- -------- -------------------- ------- ------------------------
1    30720    SYSTEM               ***     /data/jieket4dg/datafile/system.260.1016468519
2    32704    SYSAUX               ***     /data/jieket4dg/datafile/sysaux.306.1016468763
3    10240    UNDOTBS1             ***     /data/jieket4dg/datafile/undotbs1.270.1016468699
4    3557     USERS                ***     /data/jieket4dg/datafile/users.264.1016468597
5    32704    JIEKE_DATA           ***     /data/jieket4dg/datafile/jieke_data.261.1016468517
6    20480    JIEKE_INDEX          ***     /data/jieket4dg/datafile/jieke_index.262.1016468595
7    5120     JIEKE_DAT            ***     /data/jieket4dg/datafile/jieke_dat.256.1016468521
8    1024     PROD_YD_DATA         ***     /data/jieket4dg/datafile/prod_yd_data.257.1016468697
9    1024     PROD_YD_INDEX        ***     /data/jieket4dg/datafile/prod_yd_index.305.1016468765
10   5120     PROD_MOBISCF_DATA    ***     /data/jieket4dg/datafile/prod_mobiscf_data.269.1016468595
11   5120     PROD_MOBISCF_INDEX   ***     /data/jieket4dg/datafile/prod_mobiscf_index.304.1016468767
12   5120     PROD_DBSZ_DATA       ***     /data/jieket4dg/datafile/prod_dbsz_data.295.1016468521
13   5120     PROD_DBSZ_INDEX      ***     /data/jieket4dg/datafile/prod_dbsz_index.277.1016468701
14   29696    SYSAUX               ***     /data/jieket4dg/datafile/sysaux.265.1016468591
15   29696    SYSAUX               ***     /data/jieket4dg/datafile/sysaux.274.1016468701
16   10240    UNDOTBS2             ***     /data/jieket4dg/datafile/undotbs02.dbf
17   10240    UNDOTBS3             ***     /data/jieket4dg/datafile/undotbs03.dbf
18   10240    UNDOTBS4             ***     /data/jieket4dg/datafile/undotbs04.dbf
19   1400     PROD_SCFOP_TBS       ***     /data/jieket4dg/datafile/prod_scfop_tbs.300.1037881143
20   2048     USERS                ***     /data/jieket4dg/datafile/users.307.1045325715
21   100      TEST_PY_DATA         ***     /data/jieket4dg/datafile/test_py_data.308.1057426717
22   32767    JIEKE_DATA           ***     /data/jieket4dg/datafile/jieke_data.309.1067980347
23   500      ITSM_AUTO_TEST1_DATA ***     /data/jieket4dg/datafile/itsm_auto_test1_data.310.1072006145
24   500      ITSM_AUTO_TEST2_DATA ***     /data/jieket4dg/datafile/itsm_auto_test2_data.311.1072006461
25   1824     OGG_TBS              ***     /data/jieket4dg/datafile/ogg_tbs.312.1080748083
26   0        T4_ccdb_DATA         ***     /data/jieket4dg/datafile/t4_ccdb_data.313.1083605453
27   0        JIEKE_DATA           ***     /data/jieket4dg/datafile/jieke_data.314.1087482763
28   0        JIEKE_DATA           ***     /data/jieket4dg/datafile/jieke_data.323.1093203957

List of Temporary Files
=======================
File Size(MB) Tablespace           Maxsize(MB) Tempfile Name
---- -------- -------------------- ----------- --------------------
2    5120     TEMP                 5120        /data/jieket4dg/tempfile/temp.273.1016480467

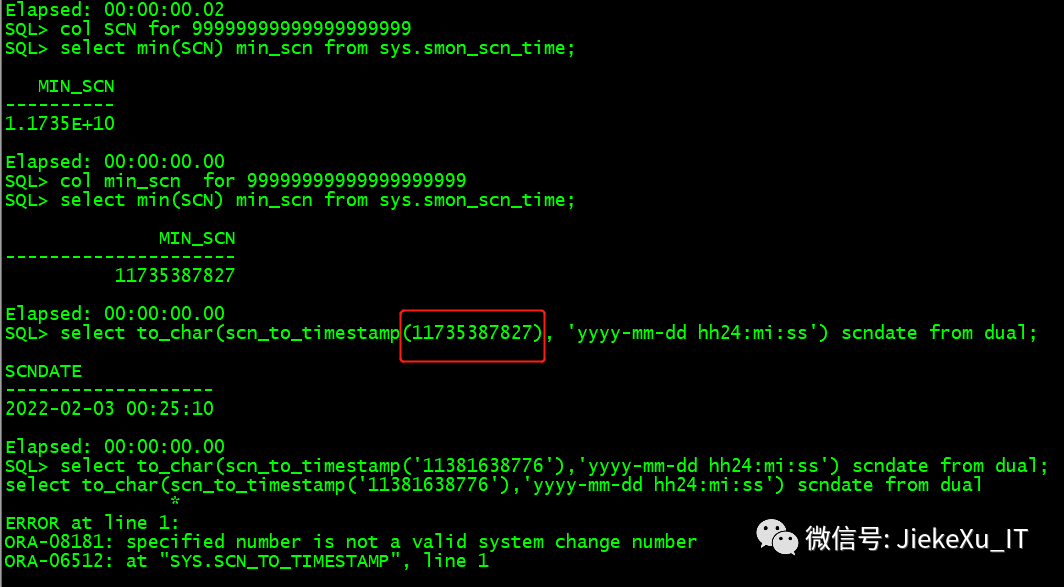

事后本想通过前面查询到的 SCN 反查当时时间，但遗憾的是在主备库查询均报错了。这是由于最小的 SCN 号也已经超过了此 SCN，故无法进行相互转换了，如下所示：

SQL> select to_char(scn_to_timestamp('11381638776'),'yyyy-mm-dd hh24:mi:ss') scndate from dual;
select to_char(scn_to_timestamp('11381638776'),'yyyy-mm-dd hh24:mi:ss') scndate from dual
               *
ERROR at line 1:
ORA-08181: specified number is not a valid system change number
ORA-06512: at "SYS.SCN_TO_TIMESTAMP", line 1

SQL> col min_scn  for 99999999999999999999
SQL> select min(SCN) min_scn from sys.smon_scn_time;

              MIN_SCN
---------------------
          11735387827

Elapsed: 00:00:00.00
SQL> select to_char(scn_to_timestamp(11735387827), 'yyyy-mm-dd hh24:mi:ss') scndate from dual;

SCNDATE
-------------------
2022-02-03 00:25:10

既然这三个数据文件有问题，那么就按照新增数据文件或者修改数据文件的方式去处理，则在主库备份这几个新增数据文件然后在备库恢复，在接着做增量恢复就行。

2、主库备份新增数据文件26 27 28

RMAN> run{
allocate channel c1 type disk;
2> 3> allocate channel c2 type disk;
4> backup datafile 26,27,28  format '/nfs/backup/incre_dbfile_%U';
5> release channel c1;
6> release channel c2;
}
7>

3、scp 传到备库恢复

scp /nfs/backup/incre_dbfile* 到备库 /data/backup/dbfile
rman target /
catalog start with '/data/backup/dbfile';

RMAN> run{
2> set newname for datafile  26 to '/data/jieket4dg/datafile/t4_ccdb_data.313.1083605453';
3> set newname for datafile  27 to '/data/jieket4dg/datafile/jieke_data.314.1087482763';
4> set newname for datafile  28 to '/data/jieket4dg/datafile/jieke_data.323.1093203957';
5> restore datafile 26,27,28;}

executing command: SET NEWNAME

executing command: SET NEWNAME

executing command: SET NEWNAME

Starting restore at 2022-01-24 17:44:42
using channel ORA_DISK_1

channel ORA_DISK_1: starting datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
channel ORA_DISK_1: restoring datafile 00026 to /data/jieket4dg/datafile/t4_ccdb_data.313.1083605453
channel ORA_DISK_1: restoring datafile 00027 to /data/jieket4dg/datafile/jieke_data.314.1087482763
channel ORA_DISK_1: reading from backup piece /data/backup/dbfile/incre_dbfile_1p0k3nsi_1_1
channel ORA_DISK_1: piece handle=/data/backup/dbfile/incre_dbfile_1p0k3nsi_1_1 tag=TAG20220124T170834
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:05:35
channel ORA_DISK_1: starting datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
channel ORA_DISK_1: restoring datafile 00028 to /data/jieket4dg/datafile/jieke_data.323.1093203957
channel ORA_DISK_1: reading from backup piece /data/backup/dbfile/incre_dbfile_1q0k3nsi_1_1
channel ORA_DISK_1: piece handle=/data/backup/dbfile/incre_dbfile_1q0k3nsi_1_1 tag=TAG20220124T170834
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:02:05
Finished restore at 2022-01-24 17:52:23

RMAN> report schema;

RMAN-06139: WARNING: control file is not current for REPORT SCHEMA
Report of database schema for database with db_unique_name jiekeT4DG
List of Permanent Datafiles
===========================
File Size(MB) Tablespace           RB segs Datafile Name
---- -------- -------------------- ------- ------------------------
1    30720    SYSTEM               ***     /data/jieket4dg/datafile/system.260.1016468519
2    32704    SYSAUX               ***     /data/jieket4dg/datafile/sysaux.306.1016468763
3    10240    UNDOTBS1             ***     /data/jieket4dg/datafile/undotbs1.270.1016468699
4    3557     USERS                ***     /data/jieket4dg/datafile/users.264.1016468597
5    32704    jieke_DATA          ***     /data/jieket4dg/datafile/jieke_data.261.1016468517
6    20480    jieke_INDEX         ***     /data/jieket4dg/datafile/jieke_index.262.1016468595
7    5120     jieke_DAT             ***     /data/jieket4dg/datafile/jieke_dat.256.1016468521
8    1024     PROD_YD_DATA         ***     /data/jieket4dg/datafile/prod_yd_data.257.1016468697
9    1024     PROD_YD_INDEX        ***     /data/jieket4dg/datafile/prod_yd_index.305.1016468765
10   5120     PROD_MOBISCF_DATA    ***     /data/jieket4dg/datafile/prod_mobiscf_data.269.1016468595
11   5120     PROD_MOBISCF_INDEX   ***     /data/jieket4dg/datafile/prod_mobiscf_index.304.1016468767
12   5120     PROD_dbsz_DATA      ***     /data/jieket4dg/datafile/prod_dbsz_data.295.1016468521
13   5120     PROD_dbsz_INDEX     ***     /data/jieket4dg/datafile/prod_dbsz_index.277.1016468701
14   29696    SYSAUX               ***     /data/jieket4dg/datafile/sysaux.265.1016468591
15   29696    SYSAUX               ***     /data/jieket4dg/datafile/sysaux.274.1016468701
16   10240    UNDOTBS2             ***     /data/jieket4dg/datafile/undotbs02.dbf
17   10240    UNDOTBS3             ***     /data/jieket4dg/datafile/undotbs03.dbf
18   10240    UNDOTBS4             ***     /data/jieket4dg/datafile/undotbs04.dbf
19   1400     PROD_SCFOP_TBS       ***     /data/jieket4dg/datafile/prod_scfop_tbs.300.1037881143
20   2048     USERS                ***     /data/jieket4dg/datafile/users.307.1045325715
21   100      TEST_PY_DATA         ***     /data/jieket4dg/datafile/test_py_data.308.1057426717
22   32767    jieke_DATA          ***     /data/jieket4dg/datafile/jieke_data.309.1067980347
23   500      ITSM_AUTO_TEST1_DATA ***     /data/jieket4dg/datafile/itsm_auto_test1_data.310.1072006145
24   500      ITSM_AUTO_TEST2_DATA ***     /data/jieket4dg/datafile/itsm_auto_test2_data.311.1072006461
25   1824     OGG_TBS              ***     /data/jieket4dg/datafile/ogg_tbs.312.1080748083
26   10240    T4_ccdb_DATA         ***     /data/jieket4dg/datafile/t4_ccdb_data.313.1083605453
27   32767    jieke_DATA          ***     /data/jieket4dg/datafile/jieke_data.314.1087482763
28   32767    jieke_DATA          ***     /data/jieket4dg/datafile/jieke_data.323.1093203957

List of Temporary Files
=======================
File Size(MB) Tablespace           Maxsize(MB) Tempfile Name
---- -------- -------------------- ----------- --------------------
2    5120     TEMP                 5120        /data/jieket4dg/tempfile/temp.273.1016480467

4、恢复完数据文件重新注册 catalog 增量恢复备库

RMAN> catalog start with '/data/backup';

using target database control file instead of recovery catalog
searching for all files that match the pattern /data/backup
no files found to be unknown to the database

RMAN> list incarnation;


List of Database Incarnations
DB Key  Inc Key DB Name  DB ID            STATUS  Reset SCN  Reset Time
------- ------- -------- ---------------- --- ---------- ----------
1       1       JXR2P    3857716255       PARENT  1          2013-08-24 11:37:30
2       2       JXR2P    3857716255       PARENT  925702     2017-10-16 14:48:01
3       3       JXR2P    3857716255       CURRENT 671821825  2019-08-16 19:27:10

RMAN> recover database noredo;
Starting recover at 2022-01-24 18:00:21
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=572 device type=DISK
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00001: /data/jieket4dg/datafile/system.260.1016468519
destination for restore of datafile 00006: /data/jieket4dg/datafile/jieke_index.262.1016468595
destination for restore of datafile 00011: /data/jieket4dg/datafile/prod_mobiscf_index.304.1016468767
destination for restore of datafile 00013: /data/jieket4dg/datafile/prod_dbsz_index.277.1016468701
destination for restore of datafile 00014: /data/jieket4dg/datafile/sysaux.265.1016468591
destination for restore of datafile 00017: /data/jieket4dg/datafile/undotbs03.dbf
destination for restore of datafile 00019: /data/jieket4dg/datafile/prod_scfop_tbs.300.1037881143
destination for restore of datafile 00020: /data/jieket4dg/datafile/users.307.1045325715
destination for restore of datafile 00021: /data/jieket4dg/datafile/test_py_data.308.1057426717
destination for restore of datafile 00023: /data/jieket4dg/datafile/itsm_auto_test1_data.310.1072006145
destination for restore of datafile 00024: /data/jieket4dg/datafile/itsm_auto_test2_data.311.1072006461
channel ORA_DISK_1: reading from backup piece /data/backup/incre_1m0k3ibg_1_1
channel ORA_DISK_1: piece handle=/data/backup/incre_1m0k3ibg_1_1 tag=TAG20220124T153407
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:04:35
channel ORA_DISK_1: starting incremental datafile backup set restore
channel ORA_DISK_1: specifying datafile(s) to restore from backup set
destination for restore of datafile 00002: /data/jieket4dg/datafile/sysaux.306.1016468763
destination for restore of datafile 00003: /data/jieket4dg/datafile/undotbs1.270.1016468699
destination for restore of datafile 00004: /data/jieket4dg/datafile/users.264.1016468597
destination for restore of datafile 00005: /data/jieket4dg/datafile/jieke_data.261.1016468517
destination for restore of datafile 00007: /data/jieket4dg/datafile/jieke_dat.256.1016468521
destination for restore of datafile 00008: /data/jieket4dg/datafile/prod_yd_data.257.1016468697
destination for restore of datafile 00009: /data/jieket4dg/datafile/prod_yd_index.305.1016468765
destination for restore of datafile 00010: /data/jieket4dg/datafile/prod_mobiscf_data.269.1016468595
destination for restore of datafile 00012: /data/jieket4dg/datafile/prod_dbsz_data.295.1016468521
destination for restore of datafile 00015: /data/jieket4dg/datafile/sysaux.274.1016468701
destination for restore of datafile 00016: /data/jieket4dg/datafile/undotbs02.dbf
destination for restore of datafile 00018: /data/jieket4dg/datafile/undotbs04.dbf
destination for restore of datafile 00022: /data/jieket4dg/datafile/jieke_data.309.1067980347
destination for restore of datafile 00025: /data/jieket4dg/datafile/ogg_tbs.312.1080748083
channel ORA_DISK_1: reading from backup piece /data/backup/incre_1n0k3ibh_1_1
channel ORA_DISK_1: piece handle=/data/backup/incre_1n0k3ibh_1_1 tag=TAG20220124T153407
channel ORA_DISK_1: restored backup piece 1
channel ORA_DISK_1: restore complete, elapsed time: 00:05:35

Finished recover at 2022-01-24 18:10:32

RMAN>

5、开库并启动 mrp0 应用日志

alter database open;
ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT FROM SESSION;

set linesize 150;
set pagesize 9999;
column name format a13;
column value format a20;
column unit format a30;
column TIME_COMPUTED format a30;
select name,value,unit,time_computed from v$dataguard_stats where name in ('transport lag','apply lag');

6、ADG 其他常用 SQL

--1.查询主备库的同步情况
set linesize 150;
set pagesize 20;
column name format a13;
column value format a20;
column unit format a30;
column TIME_COMPUTED format a30;
select name,value,unit,time_computed from v$dataguard_stats where name in ('transport lag','apply lag');

--备库查询
alter session set nls_date_format='yyyy-mm-dd hh24:mi:ss';
select THREAD#,count(FIRST_TIME) from v$archived_log where APPLIED='NO' group by THREAD#;
select THREAD#,min(FIRST_TIME) from v$archived_log where APPLIED='NO' group by THREAD#;
select THREAD#,min(SEQUENCE#) from v$archived_log where APPLIED='NO' group by THREAD#;
select BACKUP_COUNT from v$archived_log where THREAD#=&1 and SEQUENCE#=&2;

--2.查询备库的进程状态
SELECT PROCESS, STATUS,SEQUENCE#,thread# FROM V$MANAGED_STANDBY;

select MESSAGE_NUM,ERROR_CODE,TIMESTAMP,MESSAGE from v$dataguard_status;

--3.查询备库的角色
set linesize 160;
column DBNAME format a8;
column DBUNAME format a10;
column cftype format a8;
column OPEN_MODE format a25;
column DATABASE_ROLE format a18;
select name dbname,db_unique_name dbuname,controlfile_type cftype,database_role,open_mode from v$database;

--4.查询备库的日志应用模式
SELECT RECOVERY_MODE FROM V$ARCHIVE_DEST_STATUS WHERE DEST_ID=1;
RECOVERY_MODE
---------------------------------------------------------------------
MANAGED REAL TIME APPLYs

--5.开启日志应用进程：
--应用stanby 实时同步
SQL> ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT;

alter database recover managed standby database using current logfile disconnect from session;

--6.取消日志应用
ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL;

set lines 320
col message for a88
col timestamp for a20
SELECT ERROR_CODE, SEVERITY, MESSAGE,
       TO_cHAR(TIMESTAMP, 'DD-MON-RR HH24:MI:SS') TIMESTAMP
FROM V$DATAGUARD_STATUS
 WHERE CALLOUT='YES'
AND TIMESTAMP > SYSDATE-1;

select THREAD#,sequence#, first_time, next_time, applied from v$archived_log order by 3;

select name,database_role,switchover_status from v$database;
select sequence#, first_time, next_time, applied from v$archived_log order by sequence#;

col type for a15
set lines 220
set pages 330
col item for a20
col units for a15
select to_char(start_time, 'DD-MON-RR HH24:MI:SS') start_time, type,
       item, units, sofar, total, timestamp
from v$recovery_progress;

--查看当前归档日志应用情况
select a.thread#, b.max_available, a.max_applied, b.max_available-a.max_applied
from
(select thread#, max(sequence#) max_applied
from gv$archived_log
where applied='YES'
group by thread# ) a,
(select thread#, max(sequence#) max_available
from gv$archived_log
group by thread# ) b
where a.thread#=b.thread#;

select name,value,datum_time from v$dataguard_stats;
本文地址：https://liuchunjie.top/?id=645
版权声明：本文为原创文章，版权归 admin 所有，欢迎分享本文，转载请保留出处！

 发表评论


表情

还没有留言，还不快点抢沙发？
